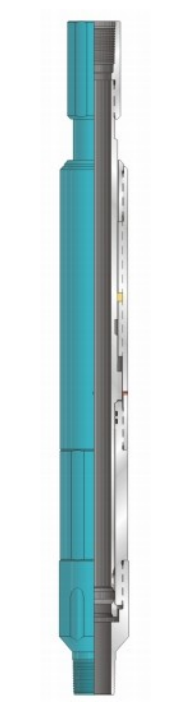

Product DescriptionRTTS safety joint is an optional emergency back off device. The safety joint releases the workstring and tools above the packer if the packer becomes stuck during operations. The design of the RTTS safety joint makes unintentional operation difficult. Features and Benefits■ Positive sequence of operation helps prevent premature release. ■ Tools above it can be retrieved when string is stuck. OperationRTTS safety joint is run immediately above the RTTS packer so that the greatest number of tools above the packer can be removed. Before the safety joint can be used, a tension sleeve located on the bottom of the lug mandrel must first be parted by pulling up on the workstring. After the tension sleeve has parted, the safety joint is released by right-hand torque while the workstring is rotated a specified number of cycles. |
 |
Size in. |
OD in. (cm) |
ID in. (cm) |
End Connections |
Length in. (cm) |
Tensile Rating** lb(kg) |
Burst Rating** psi (kPa) |
Collapse Rating** psi (kPa) |
| 4 1/2" to 5" |
3. 68 (9. 35) |
1.90 (4. 83) |
2 3/8 EUE | 48. 09 (122. 15) |
214, 096 (97 112) |
22, 693 (156 500) |
20, 880 (144 000) |
| 2 7/8 EUE | 44. 79 (113. 76) |
||||||
| 2 7/8 CAS | 44. 39 (112. 74) |
||||||
| 5 1/2" to 6 5/8" |
4. 06 (10. 31) |
2. 00 (5. 08) |
2 3/8 EUE | 40. 70 (103. 37) |
202, 915 (92 041) |
13, 717 (94 600) |
20, 329 (140 200) |
| 2 7/8 CAS | 45. 6 (115. 84) | ||||||
| 7" to 7 5/8" |
5. 00 (12. 70) |
2. 44 (6. 20) |
2 7/8 UP TBG |
41. 34 (105. 0) |
238, 234 (108 061) |
16, 675 (115 000) |
15, 805 (109 000) |
| 3 7/8 CAS | 46. 46 (118. 0) |
||||||
| 3 1/2 IF | 45. 67 (116. 0) |
||||||
| 8 5/8” to 13 3/8" |
6. 12 (15. 55) |
3. 11 (7. 90) |
4 1/2 IF | 47. 07 (119. 55) |
449, 923 (204 081) |
18. 212 (125 600) |
14, 863 (102 500) |
| 3 1/2 IF | 47. 46 (120. 55) |
