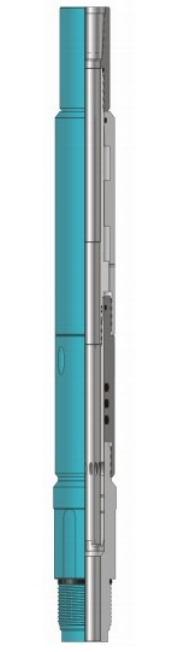

RTTS Circulating Valve

RTTS Circulating Valve


RTTS circulating valve is a locked-open/locked-closed valve that serves as both a circulating valve and bypass. The clearance between the RTTS packer (or any hook wall packer) and the casing ID is relatively small. To reduce the effect of fluid-swabbing action when the tool is run in or pulled out of the hole, a packer bypass is generally used.

Features and Benefits

■ The valve can be locked closed when the packer is unset to reverse fluid around the bottom of the packer
■ The tool's full opening allows tubing-type guns and other wireline equipment to pass.

Operation
The RTTS circulating valve is automatically locked in the closed position when the packer is set. During testing and squeezing operations, the lock helps prevent the valve from being pumped open. A straight J-slot in the locked-open position can be used with the straight J-slot (optional) in the packer body. This combination eliminates the need to turn the tubing to close the circulating valve or reset the packer after the tubing has been displaced with cement

The RTTS circulating valve can be run directly above the packer body or further up the workstring.
When placed in the hole, the valve must be in the locked-open position. The J-slot in the packer-body drag block (or drag sleeve) must also be placed in the unset position.
When the circulating valve is opened to come out of the hole, the tubing is lowered, turned to the right, and picked up.




Size in. OD
in, (cm)
ID
in. (cm)
End Connections Length in. (cm) Tensile Rating** lb (kg) Burst Rating** psi (kPa) Collapse Rating** psi (kPa)


4 1/2" to 5"

3,56

1.77
2 3/8 EUE. Bx3
3/32-10 UN. P
35.69
(90.64)

179, 294

23,853

21,866
(9.05) (4.50) 2 7/8 CAS 39.94
(101.45)
(81 327) (164 500) (150 800)


5 1/2" to 6 5/8”

4.17

1,99
2 3/8 UP TBG.B x3
1/2-8 UN.P

35.51

191,667

14,384

13,775
(10.6) (5.05)
2 7/8 CAS
(90.2) (86 939) (99 200) (95 000)

T
4.86
(12.35)

2,36
2 7/8 UP TBG.B x4
5/32 - 8 UN.P
36.50
(92.7)

226,536

20,300

19,140
5,00
(12.7)
(6.00)
3 1/2 IF
39.17
(99.5)
(102 755) (140 000) (132 000)

8 5/8" to 20"
6,12
(15.55)
3,00
(7.62)

4 1/2 IF
42.86
(108.87)
516,736
(234 388)

15,515 (107 000)

14,790 (102 000)
 These are the most common sizes. Other sizes may be available.
 **The values of tensile, burst, and collapse strength are calculated with new tool conditions, Lame's formulas with Von-Mise's Distortion Energy Theory for burst and collapse strength, and stress area calculations for tensile strength.
  These ratings are guidelines only.
